UAE region Infrared Photocell Sensor Safety Protection for Boom Barriers Automatic Gates

Place of Origin	China
Marca	JUTAI
Certificazione	CE
Model Number	IR-20
Minimum Order Quantity	1
Prezzo	negotiable
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

Dettagli

IP Rating	IP65	HS Code	8531901000
Package Size	12.00cm * 11.70cm * 4.30cm	Package Gross Weight	0.150kg
Detection Type	Photon Detector	Type	Wired

Lasciate un messaggio

Descrizione di prodotto

UAE region Infrared Photocell Sensor Safety Protection for Boom Barriers Automatic Gates 0

Product Description

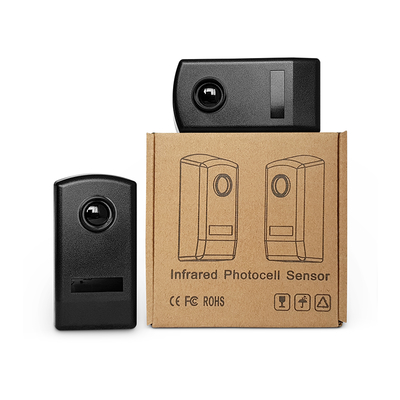

The JUTAI Anti-Strong Light Infrared Photocell Sensor is a high-performance safety device engineered for boom barriers, automatic gates, and access control systems. It detects interruptions in the infrared beam to trigger instant responses (e.g., stopping or reversing gates), effectively preventing collisions with vehicles, pedestrians, or objects. Equipped with advanced anti-glare technology, weather resistance, and broad compatibility, it ensures reliable operation in diverse indoor and outdoor environments.

Key Features

Anti-Strong Light Performance: Integrates a narrow infrared beam and amplifier to resist interference from intense sunlight, maintaining stable detection even in harsh light conditions.
Integrated Design: Combines transmitter and receiver in one unit, simplifying installation and minimizing external light interference.
Self-Detecting Function (IR-20 Model): Automatically stops and retracts gates/barriers when the beam is blocked, enhancing operational safety.
Wide Detection Range: 2-20 meters, adaptable to various scenarios (parking lots, residential gates, commercial entrances).
Durable Construction: IP65 waterproof and dustproof rating, with UV resistance, suitable for harsh outdoor conditions (rain, dust storms).
High Compatibility: Utilizes German-grade infrared lamps and Japanese Omron relays, compatible with most gate operators and barrier systems.

Technical Parameters

Parameter	Specification
Detection Principle	Infrared beam interruption
Detection Range	2-20 meters
Mounting Height	20-40cm above ground
Light Resistance	Anti-strong light (resists intense sunlight)
Protection Rating	IP65 (waterproof, dustproof)
Operating Temperature	-20°C to +60°C
Relay Type	Japan Omron relay
Infrared Lamp Brand	German-grade
Function	Self-detecting (IR-20 model)
Application	Boom barriers, automatic gates, pedestrian gates, anti-burglar systems
Package Inclusion	1 x Sensor, English user manual (with diagrams)

Application Scenarios

Boom barriers and parking lot gates
Automatic vehicle and pedestrian gates
Residential and commercial entrance security
Anti-burglar detection for windows/doors
Industrial access control systems

UAE region Infrared Photocell Sensor Safety Protection for Boom Barriers Automatic Gates 1

Technical parameter

Feature	Specification
Power Supply	12-24VAC/VDC
Max. Range	20 Meters
Operating Temperature	-10 to +60°C
Max. TX Working Current	25mA
Max. RX Working Current	35mA
Max. Relay Contact	500mA at 48VAC/VDC
IP Rating	IP65 with rubber
